Describing Data I
Distributions

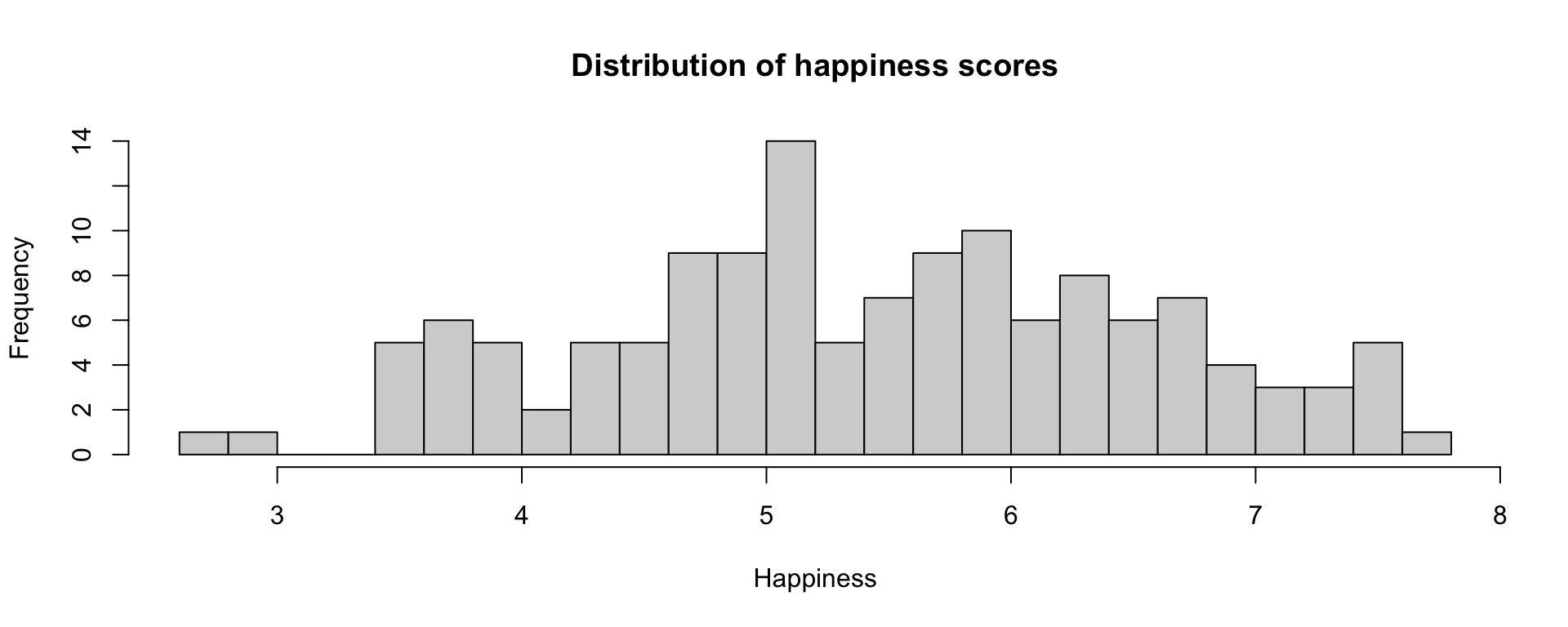

A distribution often refers to a description of the [relative] number of times a variable X will take each of its unique values.
It’s important to remember that the mean of a population (or group) may not represent well some (or any) members of the population.
Example: André-François Raffray and the French apartment
Code
world %>% ggplot(aes(x = Happiness)) +
geom_histogram(fill = "gray") +
geom_vline(aes(xintercept = mean(Happiness))) +
geom_vline(aes(xintercept = median(Happiness))) +
geom_label(aes(x = mean(Happiness), y = maxFreq(Happiness)),
label = "mean") +
geom_label(aes(x = median(Happiness), y = maxFreq(Happiness)*2),
label = "median") +
labs(x = "Happiness", y = "Frequency") +
theme_bw()

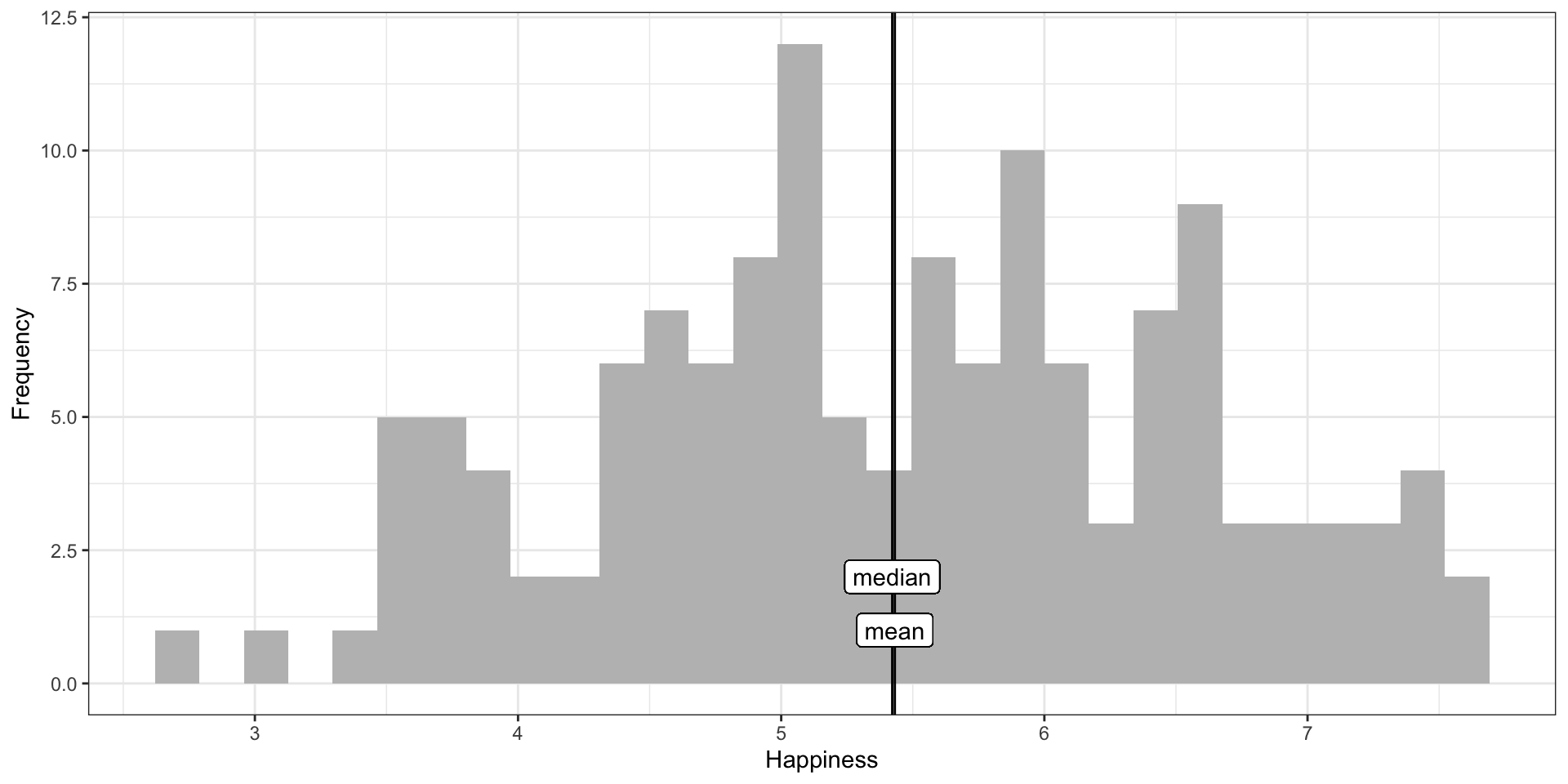

In a normal distribution, the mean, median, and mode are all relatively equal.
Code
world %>% ggplot(aes(x = Corruption)) +
geom_histogram(fill = "gray") +
geom_vline(aes(xintercept = mean(Corruption, na.rm=T))) +
geom_vline(aes(xintercept = median(Corruption, na.rm=T))) +
geom_label(aes(x = mean(Corruption, na.rm=T), y = maxFreq(Corruption)), label = "mean") +
geom_label(aes(x = median(Corruption, na.rm=T), y = maxFreq(Corruption)*2), label = "median") +
labs(x = "Happiness", y = "Frequency") +
theme_bw()

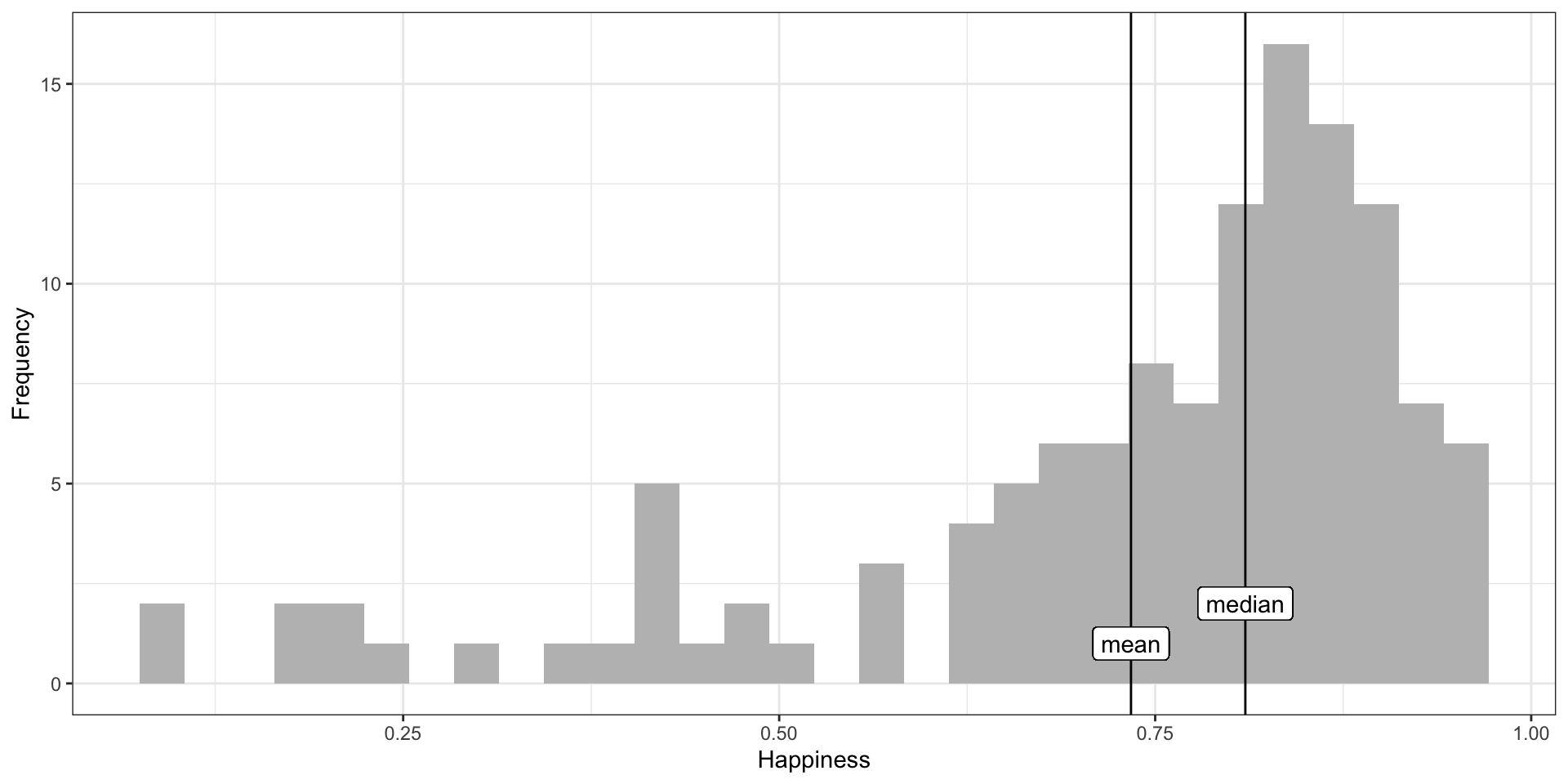

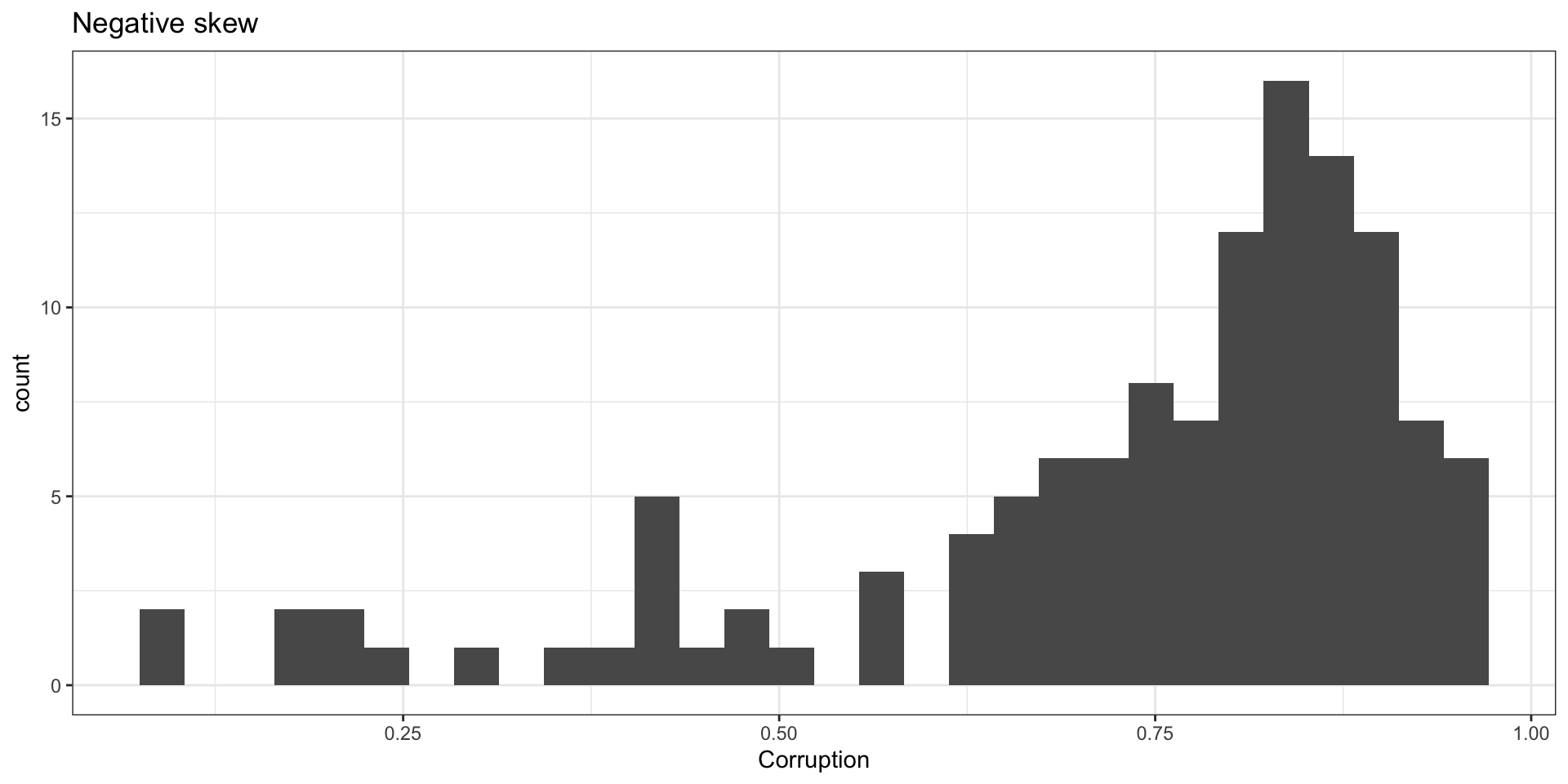

In a skewed distribution, both the mean and median get pulled away from the mode. The mean is pulled further.
Code
world %>% ggplot(aes(x = Corruption)) +
geom_histogram(fill = "gray") +
geom_vline(aes(xintercept = median(Corruption, na.rm=T))) +
geom_label(aes(x = median(Corruption, na.rm=T),
y = maxFreq(Corruption)*2),
label = "median") +
geom_vline(aes(xintercept = quantile(Corruption,
probs = .25,
na.rm=T)),
color = "blue") +
geom_vline(aes(xintercept = quantile(Corruption,
probs = .75,
na.rm=T)),
color = "blue") +
geom_label(aes(x = quantile(Corruption,
probs = .25,
na.rm=T),
y = maxFreq(Corruption)*3,
label = "lower IQR"),
color = "blue") +
geom_label(aes(x = quantile(Corruption,
probs = .75,
na.rm=T),
y = maxFreq(Corruption)*4,
label = "upper IQR"),
color = "blue") +
labs(y = "Count") +
theme_bw()
Code

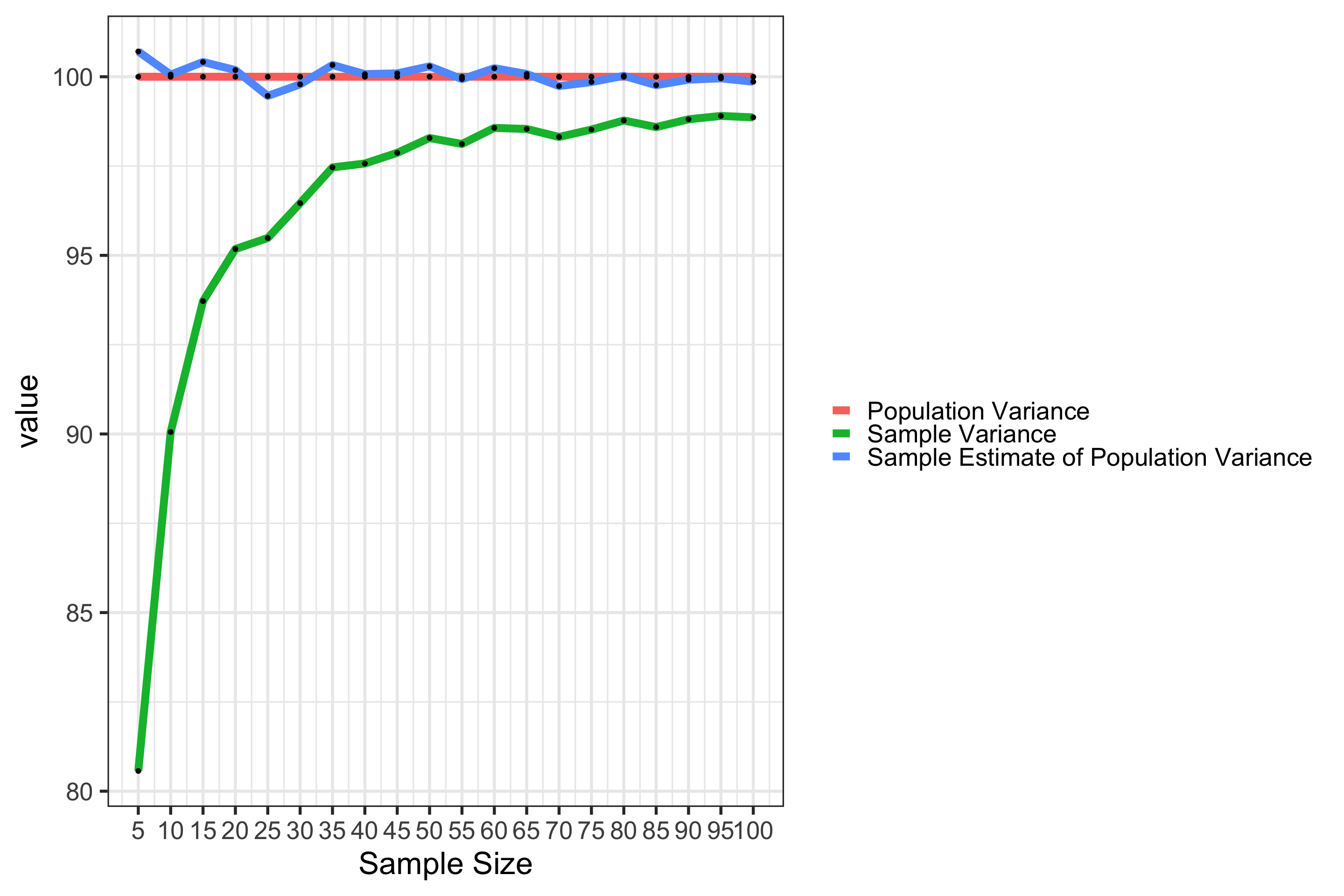

# this is the code that simulates the bias of the variance estimator
# in this simulation, we draw from a known population distribution with
# standard deviation 10.
# for each sample, we calculate the variance using both the population
# formula (dividing by N) and the sample formula (dividing by N-1)
# we repeat this process 10,000 times for each sample size
# for each sample size, we calculate the average estimate of the variance
# using each formula
# this is compared to 100, the true known population variance
set.seed(100917) #so every time I run this, I gets same random draws
# custom function to estimate variance using population formula
sample_var = function(x){
mx = mean(x, na.rm=T)
deviations = x-mx
sq_dev = deviations^2
ss = sum(sq_dev)
nx = length(!is.na(x)) #how many not missing
sample_var = ss/nx
}
#number of samples
draws = 10000
#which sample sizes to test
sample_sizes = seq(from = 5, to = 100, by = 5) # creates c(5, 10, 15, 20, ..., 90, 95, 100)
#data frame to store simulations
var_estimates = data.frame(size = sample_sizes, sample = NA, estimate = NA)
for(i in sample_sizes){ # loop through sample sizes. In each loop, i takes on the next value in the sample_sizes vector
sample_est = numeric(length = draws) #create empty vector
estimate = numeric(length = draws) # create empty vector
for(j in 1:draws){ # loop through draws. In each loop, j takes on new integer
sample = rnorm(n = i, mean = 1000, sd = 10) # randomly draw sample from pop with variance 100
sample_est[j] = sample_var(sample) # calculate variance using population formula
estimate[j] = var(sample) # calculate variance using sample formula
}
row = which(var_estimates$size == i) #which row in data frame does this belong to?
var_estimates$sample[row] = mean(sample_est) # average of variance estimates (using pop) across draws
var_estimates$estimate[row] = mean(estimate) # average of variances (using sample) across draws
}
var_estimates %>%
mutate(population = 100) %>% #add population variable
pivot_longer(cols = c(sample, estimate, population)) %>% # long-form
mutate(name = factor(name, #lovely labels
levels = c("population","sample","estimate"),
labels = c("Population Variance",
"Sample Variance",
"Sample Estimate of Population Variance"))) %>%
ggplot(aes(x = size, y = value)) + # plot, define x and y varibles
geom_line(aes(color = name), size = 3) + # draw line from each point
scale_x_continuous("Sample Size", breaks = sample_sizes) + # label x axis
scale_color_discrete("")+ # no label for color legend
geom_point() + # add points
theme_bw(base_size = 25) # nice theme, big font
